Buying a plot can feel straightforward when the seller shows you the documents, points out the corners and confirms the total area. But what you see on the ground may not always match the dimensions or boundaries you expected.

An old fence might not follow the recorded boundary. The plot could have an irregular shape that affects construction. A neighbouring structure may appear close to the boundary, or the available layout may not clearly identify the portion being sold.

These are the reasons plot measurement before buying land deserves attention. Before committing your savings to a property, it helps to understand what you are actually purchasing, how the land sits on the ground and whether anything needs further verification.

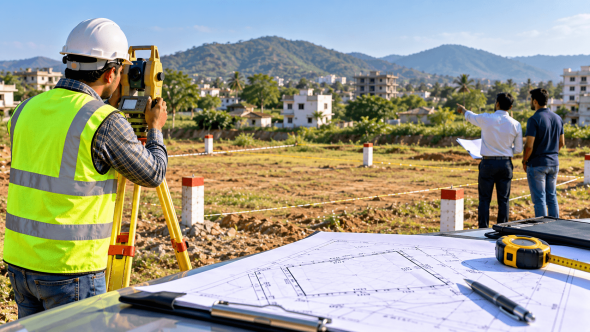

A professional land survey can help you assess the physical site and identify measurement-related concerns before you proceed with the transaction. Here are eight important things to check.

1. Actual Plot Dimensions and Area

Start with the basic question: does the physical plot appear consistent with the dimensions and area stated in the available documents?

A surveyor can measure the site using suitable surveying methods and compare the findings with relevant plans and records.

Do not rely only on the seller’s verbal explanation or an estimate based on the number of steps across the land.

For example, a plot may be described as rectangular, but the actual shape could be slightly irregular. That difference may affect the usable space available for a house, parking area or other planned construction.

What to check: The measured dimensions, shape and area, along with any discrepancy that requires further investigation.

2. Property Boundaries and Corner Points

Knowing the area of a plot is not enough. You also need to understand where the property begins and ends.

Ask the surveyor to assess the identifiable boundary points with reference to the available survey information and property documents.

Look carefully at:

• Existing boundary stones or markers
• Fences and compound walls
• Corners of the plot
• Adjoining properties
• Any unclear or disputed boundary sections

A fence or wall should not automatically be treated as proof of the recorded boundary.

If the boundary is disputed or requires formal determination, a private survey may not be sufficient. Maharashtra’s official land-record system provides measurement services through e-Mojni for applicable land-measurement requirements.

महाराष्ट्र भूमी अभिलेख विभाग+1

3. Survey Number, Gat Number and Relevant Records

Before buying land in Maharashtra, make sure you understand which specific parcel is being offered for sale.

Depending on the property, relevant records may include a survey number, Gat number, Property Card, 7/12 extract, subdivision information or existing survey maps.

The appropriate documents depend on the location and type of property.

Maharashtra’s Land Records Department provides services for land records, maps and measurement applications through its official portal.

महाराष्ट्र भूमी अभिलेख विभाग+1

A surveyor can help assess the physical site against the available survey information. However, a physical survey does not independently establish legal ownership.

Practical tip: If the seller is offering only a portion of a larger parcel, clarify exactly which portion is being sold and what records or plans identify it.

4. Plot Shape and Usable Space

Two plots with the same area may offer very different construction possibilities.

One may be a regular rectangle, while the other has angled boundaries, a narrow entrance or an uneven shape.

These differences can affect building placement, parking, internal movement and the way an architect plans the site.

A professional measurement can help establish the dimensions and geometry of the plot so you can discuss the actual space available with your architect.

What to check: Width, length, irregular corners, narrow sections and whether the measured shape suits your intended use.

Remember that a survey alone does not confirm building permission or development potential. Applicable planning rules and approvals must be checked separately.

5. Access Road and Entry Points

A plot may look attractive, but how will you reach it?

Check the physical approach to the property and identify the access shown in the available layout or other relevant documents. A survey can help locate the plot in relation to visible roads, pathways and neighbouring land.

Pay attention to:

• The location and width of the approach
• The position of the entrance
• Any visible obstruction
• Whether the site layout corresponds with the physical approach
• Any access-related uncertainty that needs legal verification

A survey can document physical conditions, but it cannot by itself establish a legal right of way. If access depends on an easement, shared road or another person’s land, obtain appropriate legal advice before purchasing.

6. Signs of Encroachment or Boundary Overlap

Imagine buying a plot and later discovering that a neighbouring compound wall, shed or other structure appears to extend into the area you expected to own.

This does not automatically prove encroachment, but it is a reason to investigate before the purchase.

A surveyor can measure the site, review available survey information and help identify apparent differences between the expected boundary and existing physical occupation.

If a discrepancy is found, ask what further measurement, official demarcation or legal review may be necessary.

Do not assume that a visual inspection alone can resolve a boundary disagreement. The appropriate procedure depends on the records, the nature of the issue and the relevant authorities.

7. Ground Levels, Slope and Drainage Conditions

Not every plot is level, even when the slope is difficult to notice during a quick visit.

Changes in elevation can influence building design, site preparation, drainage and the amount of soil that may need to be cut or filled.

If the property is sloping, uneven or intended for substantial construction, ask whether a contour or topographical survey is appropriate.

This can help you understand the existing terrain before finalising plans or estimating earthwork requirements.

For example, a plot that needs significant filling may require additional planning and expenditure compared with a site whose existing levels are close to the proposed construction levels.

A contour survey provides elevation information; the actual construction and drainage solutions should be assessed by the relevant design professionals.

8. Suitability for Your Intended Project

The final check is to connect the measurements to your reason for buying the land.

Are you planning to build a home, develop several plots, construct a commercial property or hold the land for future use?

The answer determines what additional information may be useful.

For a house, accurate dimensions and boundary information may be the immediate priority. For a larger development, you may also need topographical information, layout marking, engineering surveying or earthwork estimates.

A surveyor can help identify the relevant surveying scope, while an architect, engineer, planning professional or property lawyer can advise on design, permissions and legal matters within their respective roles.

What Documents Should You Keep Ready?

Before arranging a plot measurement, gather the documents available to you. Depending on the property, these may include:

• Sale deed or previous property documents
• 7/12 extract or Property Card, where applicable
• Survey or Gat number details
• Existing measurement maps
• Layout or subdivision plans
• Available mutation records
• Any previous survey report

The exact documents required depend on the property and purpose of the survey. Ask the surveyor which records will help assess the site.

Remember that plot measurement is not a substitute for title verification. Have ownership, encumbrances, applicable permissions and other legal aspects checked separately by the appropriate professionals.

Why Choose a Professional Land Surveyor?

A professional survey provides a more structured basis for understanding the physical plot than relying on visual estimates or informal boundary markers.

Shradha Land Surveyors provides engineering land surveys, layout marking and demarcation, contour surveys and related surveying services. The company states that it has around 20 years of experience serving areas including Virar, Vasai, Nalasopara, Palghar and Dahanu, as well as other locations.

SLS+1

For buyers in these areas, the appropriate service will depend on the site’s condition, available documents and intended use.

Final Advice Before You Buy

Do not wait until after registration to investigate a plot’s dimensions or unclear boundaries.

Arrange the appropriate measurement when the site or documents raise questions. If a discrepancy appears, understand what it means and what further checks are needed before proceeding.

A survey cannot guarantee that every property risk will be discovered, but it can give you useful physical information for a better-informed decision.
